ATS (Automatic Transfer Switch)
ATS (Automatic Transfer Switch)
WTS series Dual Input Redundant Static Switch

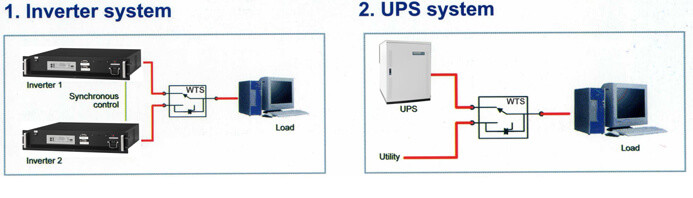

WTS add one or more standby power upon one UPS or another power supply, It can supply to the load through redundancy transfer switch, WTS series redundant switch with dual AC power input which compose of redundant uninterruptible power supply system, that is, to increase one or more standby power or another loop power supply, control power to the load by redundant switch, usually by one route(AC input No.1) to supply the power to equipment, and the other route (AC input No.2) as the hot backup power supply. When the AC input No.1 fails, the redundant switch automatically transfers to the AC input No.2, to continue the output power supply
Specifications:
| Item | WTS010 | WTS032 |
|---|---|---|
| Input voltage（Vac） | 110/220±25% | |
| Input frequency（Hz） | 50/60Hz±6Hz | |
| Rated output capacity 110V | 1KVA/0.7KW | 3KVA/2.1KW |
| Rated output capacity 220V | 2KVA/1.4KW | 6KVA/4.2Kw |
| Overload | 125%, not limited; 150%≥60S | |
| Output voltage（Vac） | 110/220±25% | |
| Transfer time (mS） | ≤8 | ≤10 |
| Dimension（mm）（W×D×H） | 482×260×44mm | |
| Weight（KG） | 4 KG | |
