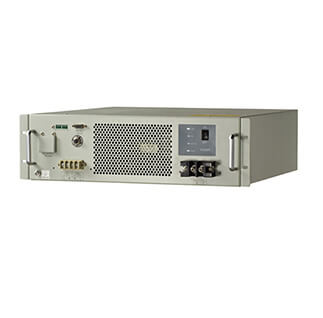

    Sine Wave Inverter IHR 1000VA ~ 3000VA

    Feature :
    • Compliant with communication standard of AC and DC power supply system
    • High-performance SPWM inversion technology
    • Low DC end current noise
    • Full protection function
    Specifications:
    The Specification of Inverter IHR series
    Model No.IHR-1000IHR-2000IHR-3000
    Rated Output Capacity1000VA/700W2000VA/1400W3000VA/2100W
    AC InputAC input220Vac or 230Vac
    Frequency50Hz
    AC input range(182Vac~278Vac)±5Vac
    Frequency range(45Hz~55Hz)±0.5Hz
    DC InputRated current21A42A63A
    Rated voltage48VDC
    Start  input Max  impact currentLess than 150% rated current
    DC    Input    range   (40～60)±1VDC
    of normal start
    Low voltage alarm of DC input44.0±1VDC
    High voltage alarm of DC input58.0±1VDC
    Low  voltage  protect  of DC input39.0±1VDC
    Over voltage protect  of DC input60.0±1VDC
    Input   terminal   phone constant-weight   static voltage<2mV(Connect to battery)
    Input  terminal   reverse comparable broad range static current<10%
    Input  terminal   reverse comparable   phone constant-weight  static current<1%
    Model No.IHR-1000IHR-2000IHR-3000
    AC   OutputAC output (Vac)220 or 230V±3%(Inverter output)
    Frequency(Hz)50±5Hz(AC input is normal), 50Hz±1%(AC input is abnormal)
    Dynamic  voltage transient<5%
    Resume time of dynamic transient (ms)< 60ms
    Power factor0.7
    Overload CapacityLoad105% ～ 125% lasting 60 seconds, load126% ～ 150% lasting  30seconds, resume point is 90% load
    Peak value coefficient of output currentNo less than 3
    Wave formSine Wave, THD<3% (Linear Load),Sine Wave,
    THD<8% (Nonlinear Load)
    Output ModeThree socket
    OthersDisplayLED Indicating Lamps (Display working status and load)
    Alarm FunctionSync input is abnormal, DC input is abnormal,
    Overload, INVERTER Failure
    Protection FunctionDC   input  under  voltage  or  over  voltage  Protection,  Overload   Protection, Short-circuit Protection, Output over voltage or under  voltage Protection, Over temperature Protection
    Communication FunctionDB9 Communication Port (Contain one RS232 and dry contactor communication signals)
    TransmissionMeet YD/T983-1998 A-standard
    RadiationMeet YD/T983-1998 A-standard
    Interference RejectionMeet YD/T983-1998 A-standard
    Insulation Resistance> 2MΩ( 500VDC)
    Dielectric Strength2121VDC(Input and output to ground, DC Input to AC output),
    no flashover voltage
    Cooling-down MethodWind cooling
    Working Temperature(℃)－10℃~40℃
    Relative Humidity0~95%( without condensation)
    Height Above Sea Level≤1500m, meet GB3859.2-93 derate require
    Noise (dB)<55(1m)
    INVERTER   Storage
    Temperature (℃)    		-40℃~+65℃
    Storage EnvironmentRelative Humidity: 0~95%( without condensation)
    Dimension (mm)
    (W ×  D  × H)    		Stand-up single unit: 430×440×88 (2U of 19 inches rack mode) Rack mountable mode: 484×440×88
    Weight8 Kgs10 Kgs12 Kgs
