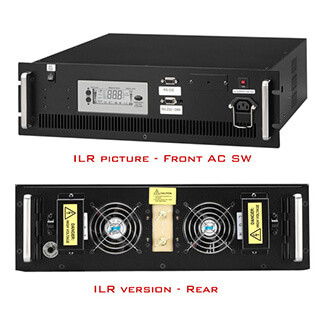

ILR 1KVA ~ 4KVA

1

Availability： In stock

Model number： ILR-1000-4000VA

Inquiry
Quantity
    Share

    Sine Wave Inverter ILR 1000VA ~ 4000VA

    Feature :
    • Sine Wave output.
    • Wide DC input range.
    • Output short circuit protection.
    • DC input polarity protection.
    • Designed for any kind of load.
    • Adjustable low battery shutdown level.
    • Automatic restart of load after overload shutdown.
    • Audible alarm.
    • Thermal control cooling fan.
    • Generator compatible (for units with AC input).
    • Smart Bypass function (for units with AC input).
    • Full function of LCD display (LED display optional)
    Specifications:
     AC Output
     115V Models230V Models
    Power Levels crated at nominal inputs1000VA/ 700W；1700VA/ 1200W；
    2500VA/ 1800W；3500VA/ 2400W；
    4000VA/ 3200W
    Output Voltage100V/110V/115V/120V Selectable200V/220V/230V/240V Selectable
    Voltage WaveformSine wave
    Crest Factor05:01
    Output Frequency50/60Hz(selectable by using the remote set-up software)
    Regulation±3% (output voltage adjustable by using the remote set-up software)
    Transfer time2ms typical (Bypass to inverter mode)
    (Models with AC input)Zero (Inverter mode to bypass mode)
    Over current protectionOver load alarm level 100% ~ 120%
    Over load shutdown level 120% ~ 190%
    (Adjustable by using the remote set-up software)
    AC Input (optional input)
     115V Models230V Models
    Nominal Voltage100V/110V/115V/120V Selectable200V/220V/230V/240V Selectable
    Input Frequency47Hz ~ 65Hz, 50/60Hz auto-sensing
    Efficiency97% (Normal mode)
    Noise FilteringFull time EMI/RFI filtering
    Over current protectionBy re-settable over current protector
    Voltage Range-30% ~ +33% for selected nominal voltage.
    AVR RangeEnhanced Buck: +24% of selected nominal voltage
    (2 Bucks, 2 Boosts)Buck mode: +8% of selected nominal voltage
     Boost mode: -8% of selected nominal voltage
     Enhanced Boost: -20% of selected nominal voltage
    Surge Protection1000VA：216 Joules1000VA：220 Joules
    (Only available when AC Input included)1700VA ~ 4000VA：324 Joules1700VA / 2500VA：440 Joules
      3500VA / 4000VA：660 Joules
    DC Input
    Voltage24Vdc(20Vdc ~ 32Vdc)：1000VA / 1700VA
    48Vdc(40Vdc ~ 64Vdc)： 1000VA / 1700VA / 2500VA / 3500VA
    72Vdc(60Vdc ~ 96Vdc)： 1700VA / 2500VA / 3500VA
    96Vdc(80Vdc ~128Vdc)： 1700VA / 2500VA / 3500VA
    108Vdc(90Vdc ~ 144Vdc)：1700VA / 2500VA / 3500VA / 4000VA
    Typical run timeLoad <100%, No Limit
    100%<Load<120%, 30 minutes typical
    120%<Load<190%, 1 minute maximum
    190%<Load, 0.25 second typical
    ProtectionInput polarity protection (by DC relay)
    DC fuse protection (60A or 120A, depends on DC voltage and VA rating)
    Over current protection (2KHz Switching, real time protection)
    Under voltage protection
    Over voltage protection (CPU control)
    MonitoringSmart monitoring & warning for failed battery
    Communications & Management
    Interface portUPSilon2000 compatible; optional for RS232 and/or USB
    Control panelLCD or LED Selectable (Rack units with LCD only)
    Audible alarmAlarm on battery：Low battery & Battery over voltage
    Alarm on abnormal operation：Over load, Short-circuit, & Over heat
    Green mode function  (for models with AC input)1% to 14% of full load (adjustable by using the remote set-up software)
    The default setting is OFF.
    Cooling fan controlAuto on / off, controlled by temperature & operation mode
    Environmental and Safety
    Operating TemperatureUp to 1500 meters：0℃ to 40℃ (32℉ to 104℉)
    Transit/storage Temperature-15℃ to 55℃ (5℉ to 131℉)
    Relative Humidity5 - 95% non condensing
    Operating Altitude0 ~ 3000 meters
    Audible noise at 1M from surface of unit≦50 dBA
    Safety MarkingsCE
    EMCClass A, EN50091-2, FCC part15, IEC1000-2-2
    Isolation3KVac for 1 minute between DC input and AC output
    Quality control systemISO 9001
    Physical
    Dimensions:
    Unit / Shipping
    D×H×W (cm)    		Tower (ILT)Rack (ILR)
    1000VA/ 1700VA/ 2500VA：
    45 x 20 x 18 cm ／ 54 x 33 x 30 cm
    3500VA/ 4000VA：
    51 x 20 x 18／61 x 33 x 30 cm    		1000VA/ 1700VA/ 2500VA/ 3500VA：
    3u x 45 cm ／ 59 x 33 x 59 cm
    4000VA：
    4u x 45 cm ／ 59 x 38 x 59 cm
    Weight:
    Net / Gross (kg)    		1000VA：16 ／ 17 (kg)1000VA ：20 ／ 24 (kg)
    1700VA：19 ／ 20 (kg)1700VA ：26 ／ 30 (kg)
    2500VA：23 ／ 24 (kg)2500VA／ 3500VA ：34 ／ 38 (kg)
    3500VA：31 ／ 33 (kg)4000VA：48 ／ 52 (kg)
    4000VA：43 ／ 45 (kg)
    Packing Export carton for each unit, 16 - 30 units per pallet
