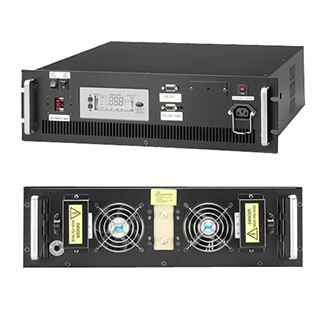

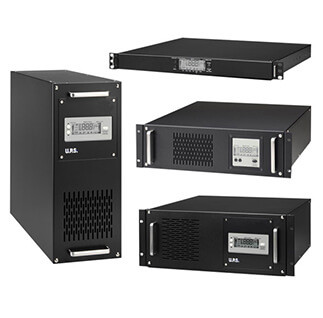

UBR-L 2KVA ~ 5KVA

UBR-L 2KVA ~ 5KVAUBR-L 2KVA ~ 5KVA

Availability： In stock

Model number： UBR-L-2KVA-5KVA

Inquiry
Quantity
    Share

    Extra Smart UPS "Tower Long-Run Ver. " UBT-L 800VA ~ 4000VA

    Feature :
    • Pure sine wave output.
    • Smart backup time estimation for any kind of battery (EBT system).
    • Adjustable voltage sensitivity, voltage-transfer points, & charging voltage.
    • Full function of LCD display.
    • Generator compatible.
    • Automatic restart of load after UPS shutdown.
    • Smart AVR function (Two buck / boost modes).
    • Cold-start capable.
    • Audible alarm.
    • Hot-swappable batteries.
    • Smart battery management.
    • Network manageable (SNMP optional).
    • Intelligent double stages of charging control, Wet battery compatible.
    • Thermal control cooling fan.
    • Protection for overload, short circuit, & over heat.
    Specifications:
    Output
     115V Models230V Models
    Power Levels crated
    at nominal inputs    		2000VA/1250W, 2700VA/1700W
    4000VA/2500W    		2000VA/1250W, 2700VA/1700W
    4000VA/2500W, 5000VA/3200W
    Output Voltage100V/110V/115V/120V Selectable200V/220V/230V/240V Selectable
    Voltage WaveformSine wave
    Crest Factor3:1
    Output Frequency
    (Synchronized to Mains)    		Auto Select for 50/60Hz
    47Hz ~ 55Hz for 50Hz nominal
    56Hz ~ 65Hz for 60Hz nominal
    Regulation (Nominal)±5% typical of nominal voltage  (optional at ±8% AVR for wide I/P up to ±35%)
    Regulation (Batt. mode)±3% of selected output voltage  (adjustable with the remote set-up software)
    Transfer timeBlackout 3ms typical
    Brownout 1ms typical
    Battery mode to Normal mode：1ms typical
    Over current protectionOver load alarm level 100% ~ 120%
    Over load shutdown level 120% ~ 190%

    (Adjustable with the remote set-up software)
    Input
     115V Models230V Models
    Nominal Voltage100V/110V/115V/120V Selectable200V/220V/230V/240V Selectable
    Input Frequency47Hz ~ 65Hz, 50/60Hz auto-sensing
    Efficiency (Normal mode)97%
    Noise FilteringFull time EMI/RFI filtering
    Over current protection1100VA：by AC fuse
    1650VA ~ 4000VA：by re-settable over current protector    		1100VA ~ 2200VA：by AC fuse
    3300VA ~ 4000VA：by re-settable over current protector
    Voltage Range-20% ~ +24% for selected nominal voltage.

    -29% ~ +33% adjustable with the remote set-up software
    AVR Range
    (2 Bucks, 2 Boosts)    		Enhanced Buck: +15% of selected nominal voltage
    Buck mode: +5% of selected nominal voltage
    Boost mode: -5% of selected nominal voltage
    Enhanced Boost: -12.5% of selected nominal voltage
    Surge Protection2000VA ~ 4000VA：324 Joules2000VA：440 Joules
    4000VA ~ 5000VA：660 Joules
    Battery
    Battery typeMaintenance–free sealed, valve-regulated, Lead-Acid
    Voltage2200VA/2700VA：48Vdc
    4000VA/5000VA：72Vdc
    Typical backup time at half-loadNo Limit
    Typical backup time at full loadNo Limit
    Charging methodSmart pulse charging with two charging modes.

    Quick charging when battery is not fully charged, trickle charging when battery is 90% fully charged.
    Average charging current11A at normal line and normal temperature (Average)
    Average charging voltage for each batteryQuick charging mode：14V maximum.

    Trickle charging mode：13.2V ~13.9V adjustable with the remote set-up software.
    ProtectionOver current protection (SCR control)
    Over charging voltage protection (SCR control)
    Thermal protection (CPU control)

    When temperature inside UPS is over 45℃, charger will stop charging for 2.5 minutes followed by an 1.5 minutes charging.  The cycle will be repeated until the temperature is lower than 44℃.
    MonitoringSmart monitoring & warning for failed battery or open-circuit battery. Auto-detection each time when power on or every 6 days.
    Communications & Management
    Standard Interface portUPSilon2000 compatible.
    RS232, USB,
    Optional Interface portDB9 SNMP, RJ45 (Surge Protection)
    Control panelLCD
    Audible alarmAlarm on battery：Low battery & Battery over voltage Alarm on abnormal operation：Over load, Short-circuit, & Over heat
    EBT (Estimation of Backup Time) systemYes
    Green mode function (Auto-shutdown during blackout)1% to 14% of full load (adjustable with the remote set-up software)

    The default setting is OFF.
    Environmental and Safety
    Operating Temp.Up to 1500 meters：0℃ to 40℃ (32℉ to 104℉)
    Transit/storage Temp.-15℃ to 55℃ (5℉ to 131℉)
    Relative Humidity5 - 95% non condensing
    Operating Altitude0 ~ 3000 meters
    Audible noise≦50 dBA
    Safety MarkingsBSMICE
    EMCClass B, EN50091-2, FCC part15, IEC1000-2-2
    Quality control systemISO 9001
    Physical
    Dimensions:
    Unit / Shipping
    (H x D)/H×D×W (cm)    		2000VA ~ 4000VA：3u x 45cm / 59 x 33 x 59(cm)
    5000VA：4u x 48cm / 64 x 40 x 60(cm)
    Weight:

    Net / Gross (kg)    		2200VA/2700VA：26 / 30 (kg)
    4000VA：34 / 38 (kg)
    5000VA：44 / 48 (kg
    PackingExport carton for each unit, 16~30 units per pallet
