Standard UKT 1KVA ~ 3KVA

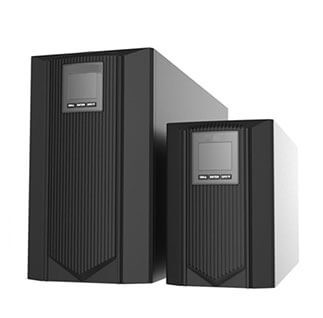

UKT Plus Series Online UPS 1~3kVA
Feature :
- Online double conversion
- High input power factor
- Wide input voltage range
- Full protection function
- Automatic Bypass
- High reliability and performance
- Intelligent RS232 Communication Port
- UPS management software (optional)
- External SNMP or USB or Dry contacts (optional)
- External battery bank (optional)
Specifications:
| MODEL | UKT1000 | UKT1000L | UKT2000 | UKT2000L | UKT3000 | UKT3000L |
|---|---|---|---|---|---|---|
| INPUT | ||||||
| Voltage (Vac) | 120-295 | |||||
| Frequency (Hz) | 50/60± 10% (50/60Hz auto-sensing) | |||||
| Power Factor | ≧ 0.99 | |||||
| THDi | < 5% | |||||
| OUTPUT | ||||||
| Capacity(VA) | 1000 | 2000 | 3000 | |||
| AC/AC Efficiency | 92% | 93% | 94% | |||
| Power Factor | 0.9 (1.0 optional) | |||||
| Voltage(Vac) | 208/220/230/240±1% (settable on display panel) | |||||
| Frequency(Hz) | 50/60±0.1 (battery mode) | |||||
| THDv | THD < 3% (linear load); THD < 5% (nonlinear load) | |||||
| Transfer Time | 0 | |||||
| Overload | 101%~115% for 1 min, 116%~133% for 1s, above 134% for 200ms | |||||
| BATTERY | ||||||
| Voltage(Vdc) | 24 | 36 | 48 | 72 | 72 | 96 |
| BATT Type | 2x9Ah12V | External | 4x9Ah12V | External | 6x9Ah12V | External |
| Charger Current (A) Max. | 1 | 4 | 1 | 4 | 1 | 4 |
| OTHER | ||||||
| Communication Interface | RS232 + UPS + EPO (RS485,Dry contact and SNMP adapter are optional) | |||||
| Display | LCD | |||||
| Alarm | Low battery,abnormal AC input,UPS failure,etc. | |||||
| Protection | Low battery, overload, short-circuit and over temperature, etc. | |||||
| Noise(dB) | < 50 | < 55 | ||||
| Working Temperature | -5 ~ 40℃ | |||||
| Relative Humidity | 0 ~ 95%, No condensation | |||||
| Dimension(WxDxH) mm | 145x360x225 | 190x400x330 | ||||
| Weight (kg) | 9.2 | 4.5 | 17.7 | 8.5 | 22.9 | 9.2 |
