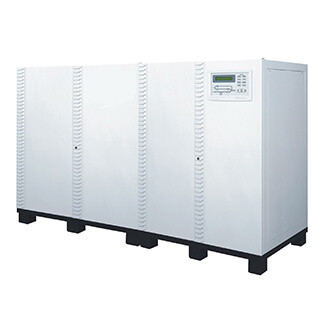

WLP-Series 10~400KVA On-line Double Conversion
Three Phase UPS/ Inverter/ Frequency Converter
Full Digitalized Intelligent Galvanic Isolation Design
Feature :
- Advanced Technology DSP, IGBT Components
- Wide Input Range, Robust Design For Harsh Environment
- Multi-CPU and Software/ Hardware Cooperate Control
- DC Start Function, Can be Started without AC
- True Galvanic Isolation Design
- Modular Design for Easy Maintenance and Minimize MTTR
- Intelligent, Safe and Unique Battery Management System
- Variety of Accessory
- Parallel Operation
- Specifications Can be Customized
Specifications:
| PHASE | 3-Phase Input / 3-Phase Output | 3-Phase Input / 1-Phase Output | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KVA | 10 | 20 | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 160 | 240 | 320 | 10 | 20 | 30 | 40 | 50 | |
| INPUT (RECTIFIER) | ||||||||||||||||||
| Input Voltage | 220VΔ / 380VΔ / 460VΔ, 208VY / 380VY / 400VY / 415VY | |||||||||||||||||
| Input Range | + / - 20% ( > +/- 20% is available upon request) | |||||||||||||||||
| Input Frequency | 50 / 60 Hz + / - 5Hz | |||||||||||||||||
| Power Walk In | 0% - 100% : 20 sec | |||||||||||||||||
| Efficiency | ≒ 98% | |||||||||||||||||
| Voltage Regulation | + / - 1% | |||||||||||||||||
| BATTERY | ||||||||||||||||||
| Battery Type / Pcs | Maintenance free lead-acid batteries / 12V x 29pcs | |||||||||||||||||
| Maximum Charge | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 120 | 160 | 5 | 10 | 15 | 20 | 25 | |
| Current Adc (Selectable) | ||||||||||||||||||
| Battery Start | Yes, UPS can be started without AC source. | |||||||||||||||||
| INVERTER | ||||||||||||||||||
| Output Voltage | 220VΔ / 380VΔ / 460VΔ, 208VY / 380VY / 400VY / 415VY, + / - 1 % | 220 / 230 / 240 V, 1Φ2ωor3ω | ||||||||||||||||
| Wave Form | Sine Wave | |||||||||||||||||
| Output Power Factor | 0.8 | |||||||||||||||||
| Frequency Lock Range | 50 / 60 Hz + / - 3Hz | |||||||||||||||||
| Output Frequency | 50 / 60 Hz + / - 0.1 Hz | |||||||||||||||||
| (Free Running) | ||||||||||||||||||
| Phase Shift Under 100% | < 0.5° | |||||||||||||||||
| Unbalance Load | ||||||||||||||||||
| THD (Linear Load) | < 2 % | |||||||||||||||||
| Overload | <110% | Continuous | ||||||||||||||||
| 110 – 125% | 15 minutes | |||||||||||||||||
| 125 – 150% | 10 minutes | |||||||||||||||||
| > 150% | 1 minute | |||||||||||||||||
| Efficiency (100% Load) | 93% | 93% | 93% | 93.50% | 93.50% | 94% | 94.50% | 94.50% | 95% | 95% | 95% | 95% | 93% | 93% | 93% | 93.50% | 93.50% | |
| STATIC SWITCH | ||||||||||||||||||
| Voltage Range | 173-277 VAC (L-N) | |||||||||||||||||
| Mains ←→ Inverter | 0 ms | |||||||||||||||||
| OVERALL CHARACTERISTICS | ||||||||||||||||||
| Overall Efficiency | 91% | 91% | 91% | 91.50% | 92% | 92% | 92.50% | 92.50% | 93% | 93% | 93% | 93% | 91% | 91% | 91% | 91.50% | 92% | |
| Maximum Heat | 1.1 | 1.3 | 1.9 | 2.6 | 3 | 3.5 | 4.6 | 5.4 | 6.5 | 8.7 | 13 | 17.4 | 1.1 | 1.3 | 1.9 | 2.6 | 3 | |
| Dissipation (Kw) | ||||||||||||||||||
| Height x Width x Depth (mm) | 1600 x 550 x 800 | 80-160KVA: 1600 x 1100 x 800, 240-320KVA: 1600 x 2200 x 800 | 1600 x 550 x 800 | |||||||||||||||
| Weight (Kg, without battery) | 300 | 350 | 400 | 480 | 550 | 680 | 820 | 950 | 1180 | 1450 | 1950 | 2450 | 300 | 350 | 400 | 480 | 550 | |
| (for standard 380V Y input only) | ||||||||||||||||||
| Audible Noise | < 65 dBA (At 1 M) | < 67 dBA (At 1 M) | < 65 dBA (At 1 M) | |||||||||||||||
| Temperature | 0 – 40℃ ( 32 – 104℉ ) | |||||||||||||||||
| Humidity | 0% - 90% (Non–Condensing) | |||||||||||||||||
| Altitude | <1500 M Above Sea Level | |||||||||||||||||
| EN50091-1,-2 | YES | |||||||||||||||||
| Short Circuit Pretection | YES | |||||||||||||||||
| Lightning / EMC Filter | MOV / Input&Output (FCC CLASS A) | |||||||||||||||||
| Galvanic Isolation | Input&Output true Galvanic isolation | |||||||||||||||||
| LED,LCD,Buzzer | YES | |||||||||||||||||
| Remote Control / | Monitoring 1~99 UPS simultaneously / Dry contact, RS232, RS485 | |||||||||||||||||
| Communication Interface | ||||||||||||||||||
