10KVA~50KVA

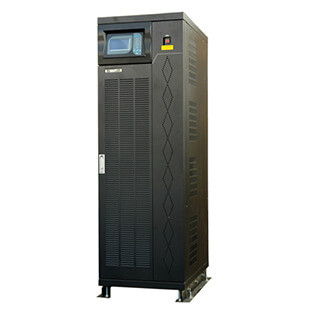

UTP 31 Series Online UPS（10-50KVA）
Feature :
- Online double conversion
- IGBT inverter and output isolation transformer
- High reliability DSP control
- Wide input voltage range
- DC cold start function
- Full protection function
- Intelligent RS232 /RS485 communication port
- SNMP adapter (optional)
- Advanced no-master-slave parallel technology (optional)
- Intelligent battery monitors system - MMBM (optional)
Application :
- Computer room, Data center, Precision instrument, Intelligent equipment
Specification :
- Specification is subject to change without prior notice.
- For Parallel system, Maintenance Bypass Switch is not available.
| MODEL | UTP3110S / UTP3110 | UTP 3115S / UTP 3115 | UTP 3120 | UTP 3130 | UTP 3140 | UTP 3150 | |
|---|---|---|---|---|---|---|---|
| INPUT | Voltage(Vac) | 380 ±25% | |||||
| Frequency(Hz) | 50/60 ±5% | ||||||
| Phase | Three phase in single phase out(L1,L2,L3,N,G) | ||||||
| OUTPUT | Capacity (KVA / KW) | 10月7日 | 15/10.5 | 20/16 | 30/24 | 40/32 | 50/40 |
| Voltage(V) | 220 ±1％ | ||||||
| Frequency(Hz) | 50/60±0.5% (battery mode) | ||||||
| Waveform | Pure sine wave THD <3% (linear load) | ||||||
| Overload | 125％ load for 1 minute, | 125％ load for 1 minute, | |||||
| 150％ load for 1 second | 150％ load for 20 seconds | ||||||
| Transfer Time | 0 | ||||||
| BATTERY | Voltage(Vdc) | 192 | 348 | ||||
| BATT Type | 32×7Ah12V / External 48×7Ah 12V/ External | Etemal | |||||
| Charger Current (A) Max | 3月5日 | 10~20 setting | |||||
| OTHER | Maintenance Bypass Switch | Optional | Standard | ||||
| Communication Interface | RS232/RS485 and dry contact (MODBUS and SNMP adapter are optional) | ||||||
| Display | LCD Display indicates frequency, voltage, load, battery voltage, etc. LED indicates running status | ||||||
| Alarm | Low battery, abnormal AC input, overload, UPS failure | ||||||
| Protection | Low battery, overload, output over voltage, short-circuit, over temperature | ||||||
| Noise | (dB) ＜60 ＜65 | ||||||
| Working Temperature | 0 ~ 40℃ | ||||||
| Relative Humidity | 0 ~ 95%, No condensation | ||||||
| Dimension (W×D×H)(mm) | 400×800×118 0/300×740×7 00 | 400×800×1180 | |||||
| Weight (Kg) | Standard/ Long backup | 250/130 | 320/195 | 203 | 225 | 273 | 304 |
