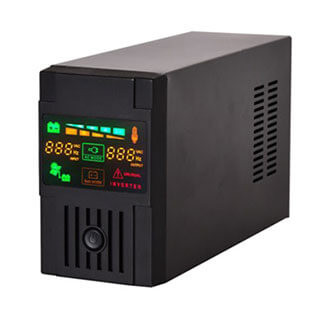

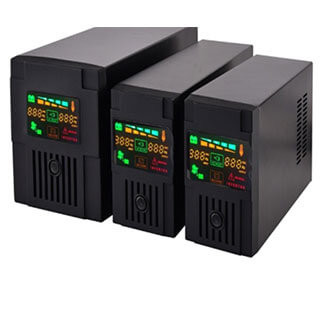

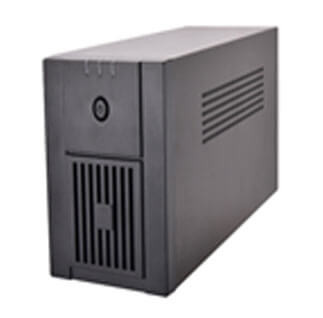

ST450 ~ ST2000

ST450 ~ ST2000ST450 ~ ST2000ST450 ~ ST2000

Availability： In stock

Model number： ST450-ST2000

Inquiry
Quantity
    Share
    Specifications:
    ModelST450ST650ST850ST1000ST1500ST2000
    Voltage110/120 VAC or 220/230/240 VAC
    Voltage Range81-145VAC or 162-290VAC
    Frequency Range60/50 Hz (Auto sensing)
    OUTPUT Voltage110/120 VAC or 220/230/240 VAC
    AC Voltage Ragulation (Bat Mode)±10%
    Frequency Range (Bat Mode)60Hz or 50Hz ± 1Hz
    Transfer timeTypical 2-6ms
    Waveform (Bat Mode)Simulated Sinewave
    Battery Type&Number12V 4.5Ah*112V 7Ah*112V 9Ah*112V 7Ah*212V 9Ah*212V 9Ah*2
    Charging ability4-6 hours recover to 90% capacity
    Full protectionOverload,discharge,and overcharger protection
    LCD DisplayAC/Battery Mode,Load/Battery Level,Input/Output Voltage,Overload,Fault,and low Battery
    LED DisplayAC Mode　　Green lghtingThe right green LED lighting&the 2nd to 5th green LEDs gradually lighting indicating load level
    Battery ModeYellow flashingThe right green LED flashing&the 2nd to 5th green gradually lighting indicating battery capacity
    FaultRed lighting
    Battery modeSounding every 10 seconds
    Low batterySounding every second
    OverloadSounding every 0.5 seconds
    Battery Replacement AlarmSounding every 2 seconds
    FaultContinuously sounding
    Dimension,D*W*H(mm)287*100*142
    Net Weight (kgs)3.54.24.9811.111.5
    Environment0-90% Relative Humidity 0-40 ℃ (Non-condending)
    Humidity
    Noisy LevelLess than 40dB
    Optional USB/RS232 PortSupports Windows 2000/2003/XP/Vista/2008,Windows 7/8 Linux Unix and MAC
    Remarks
    Minimum Quantity1000PCS
    Sample Lead time2 or 3 days
    Customed Printing1 color logo free
    Delivery Lead Time21 Days
    Payment TermsTT in advance
    Master packing weightGW: 4.2KGS
    Containner qunatity
    1X20'1X40'
    18003600
